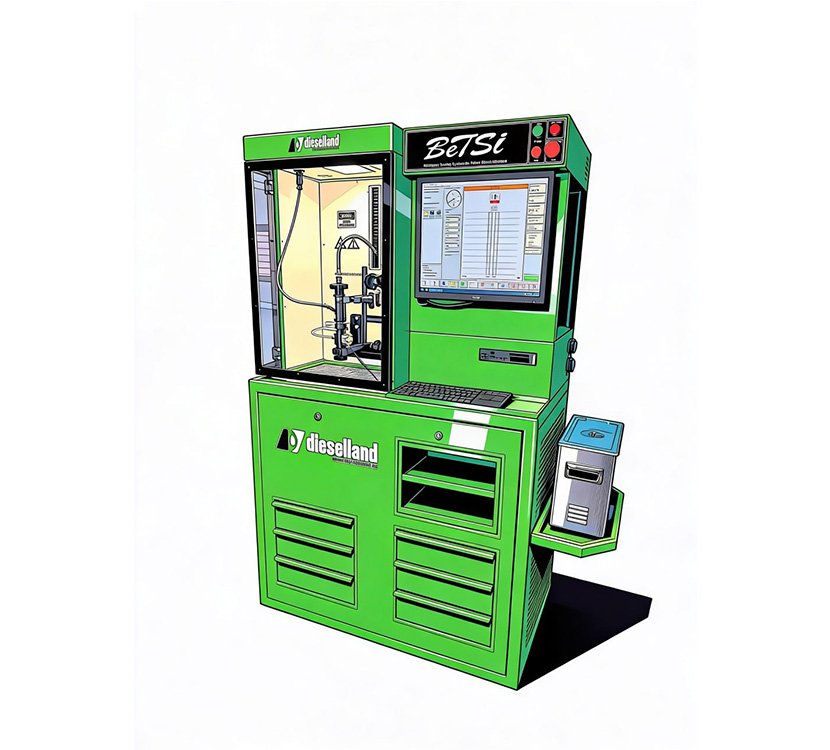

Single-channel test bench for direct injection gasoline injectors
Single-channel test bench for direct injection gasoline injectors
● Electronic measuring system
● Testing of electromagnetic and piezo injectors
● Response Time sensor
● Built-in test plans
● Printout of test results
● Ability to create custom test plans
| No. | Description | Quantity |
|---|---|---|
| 1 | Connection cable | 1 pc. |
| 2 | Adapters for gasoline injectors (3 types) | 1 set |
| 3 | Keyboard | 1 pc. |
| 4 | Printer | 1 pc. |
| 5 | Ultrasonic cleaning bath | 1 pc. |
| 6 | Transparent receiver cup for spray pattern evaluation | 1 pc. |
| 7 | Support leg for the test bench | 4 pcs. |
| Parameter | Value |
|---|---|
| Power supply voltage | 220 V |
| Operating pressure | up to 500 bar |
| Tank capacity | 20 dm³ |
| Dimensions (W×H×D) | 570 × 1600 × 1030 mm |
| Total weight | 330 kg |
