CR-Active PROF

Price: on request

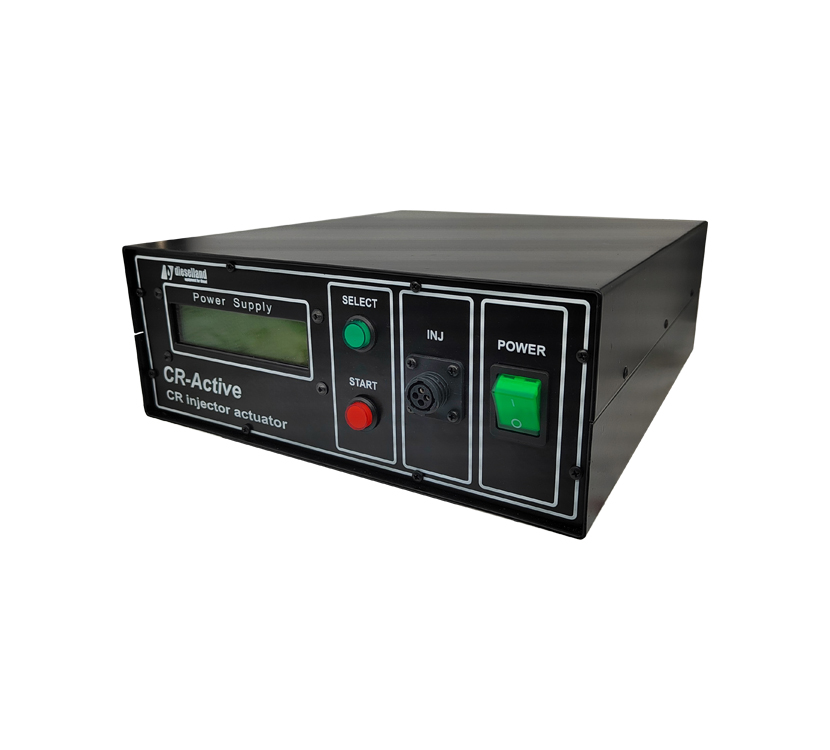

CR-Active PROF. The CR-Active actuator is designed to provide a control signal...

The CR-Active actuator is designed to provide a control signal to the Common Rail injector solenoid valve.Used to measure valve stroke when measuring the magnetic gap of Common Rail electromagnetic injectors.

Main technical data and characteristics

  • Power supply voltage: ~220 V ±15%;
  • Power consumption – up to 150 Wt;
  • Four values of the current level of the control signal;
  • The duration of the control signal is 1.5 s;
  • The number of operations per minute – no more than 12;
  • Short circuit protection;
  • Dimensions of the activator (depth x width x height) mm – 240х230х72;
  • Unit weight: netto 4 kg

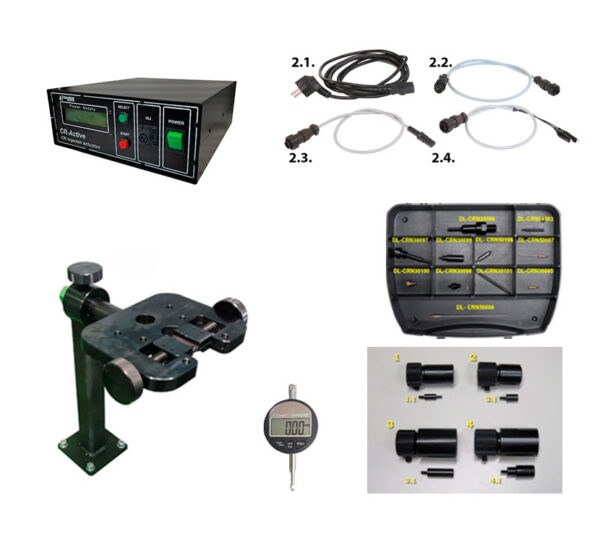

Name Number
The device signals “CR-ACTIVE” 1 pc
Set of cables to the signal device “CR-ACTIVE”
Power cable 220V 1 pc
Main cable for connecting to the electromagnet 1 pc
Adapter cable for passenger nozzle 1 pc
Adapter cable for cargo nozzle 1 pc
Passport (technical description, operating instructions) 1 pc
Tripod for manual measurement and adjustment of nozzle parameters (for electronic measuring head) 1 pc
Set of measuring probes 1 pc
Set of adapters for injectors 1 pc
Electronic display head 1 pc
Name Technical Data
Supply voltage ~220V ±15%
Power consumption до 150 W
Four values of the current level of the control signal
The duration of the control signal is not more than 1.5 sec
The number of triggers per minute is not more than 12
Short circuit protection yes
The size of the activator(depth x width x height) mm 240х230х72
Device weight up to 10 kg
