Common-Rail

CR-TEST-2P

Equipment for testing high pressure fuel pumps Common Rail system

Price: on request
CR-TEST-2P. Equipment for testing high pressure fuel pumps Common Rail system

The CR-TEST-2P Equipment allows you to perform procedures related to the testing of high-pressure fuel pumps of the Common Rail system of various manufacturers (Bosch, Denso, Delphi, VDO (Siemens)). The design of the Equipment CR-TEST-2P and the elements of its equipment meet the requirements of international standards in terms of static and dynamic parameters-ISO 4008/1 and ISO 4008/2.

The design of the CR Equipment and the elements of its equipment meet the requirements of international standards in terms of static and dynamic parameters of ISO 4008/1 and ISO 4008/2.

Max pressure 2400 bar.



⇓ List of built-in test plans for HP pumps CR system ⇓



№ Name Amount
1 *Protective glass frame DL-RSZ 1 pc.
2 *PC with installed software 1 pc.
3 *Keyboard shelf 1 pc.
4 *Pump control module PTC 1 pc.
5 *Digital 2-channel flowmeter FMDE 1 pc.
6 *Pressure accumulator DL-CR31053KIT for 3 PR 1 set.
7 *Adapter DL-UNI30828 for testing pumps CP2-CP4 1 pc.
8 *Tool shelf 1 pc.
9 *Bracket for pumps DL-KN125 1 pc.
10 *Bracket for pressure accumulator 1 pc.
11 *Pressure regulator DL-CR10055 on 2700 bar 3 pc.
12 *Pressure sensor DL-CR10053 on 2400 bar 1 pc.
13 **RPM sensor 1 pc.
14 **FLAGMAN-CODE CR injector test kit with beakerless measurement and injector coding
 1 set.
15 **DL-MSP Oil station mobile for stands 1 pc.
16 Mounting flange DL-NA107 for HP pump 1 pc.
17 Mounting flange DL-NA50 for HP pump 1 pc.
18 Mounting flange DL-NA69 for HP pump 1 pc.
19 Clutch DL-M24 for HP pump 1 pc.
20 Clutch DL-M17 for HP pump 1 pc.
21 Clutch DL-M19 for HP pump 1 pc.
22 Clutch DL-MS8 for HP pump 1 pc.
23 Clutch DL-MS9 for HP pump 1 pc.
24 Clutch DL-MS10S for HP pump 1 pc.
25 Clutch DL-MS11 for HP pump 1 pc.
26 Cable for pressure regulator HP 1 pc.
27 Cable for pressure regulator LP 1 pc.
28 Cable for pressure sensor 2 pc.
29 Cable for RPM sensor 2 pc.
30 Tube TVD for pumps CP2 (М14хМ14х600) 2 pc.
31 Tube TVD for pumps CP1-CP3 (М14хМ14х400) 1 pc.
32 DL-1CP3004 Kit hoses for HPFP СР1-СР3 1 pc.
33 DL-2CP2005 Kit hoses for HPFP СР2 1 pc.
34 DL-FMDE003 Kit standard hoses for HPFP 1 pc.
35 DL-KUK0040 Fittings kit for HPFP 1 pc.
36 TO filter for flow meter 2 pc.
37 Key for stand’s doors 4 pc.
38 Stand support leg 4 pc.
39 ** DL-ORV9 Air-cooling radiator for MAN high pressure fuel pumps 1 set.
40 ** The purification unit is designed to filter liquid vapors generated in the working compartment of equipment for testing fuel equipment. 1 pc.

*installed on the Equipment

**by additional order

ATTENTION! Optional equipment is given as an example and can be increased according to customer requirements for testing different types of pumps.

Rotation speed 50-3500min-1
Engine power 11 kW
Tank capacity 30 dm3
Power supply 3x400V/230V~ 50Hz
Test fluid temperature control 0-100±1°С
Test fluid pressure setting 0 – 1800±5bar
Pressure  in rail in a range 0 – 1800 bar
Pump flow measuring speed 0,1l/min-20 l/min
Temperature range for measurement -20  +90°С
Number of sensors in the flowmeter 3
Feed pump capacity 6 l/min
Manometer for measuring supply pressure 0÷0,16 МPa
Manometer after the feed pump 0÷0,16 МPa
Maximum current 30A
Calibration oil heater capacity 1000W
Safety screen polycarbonate 8mm

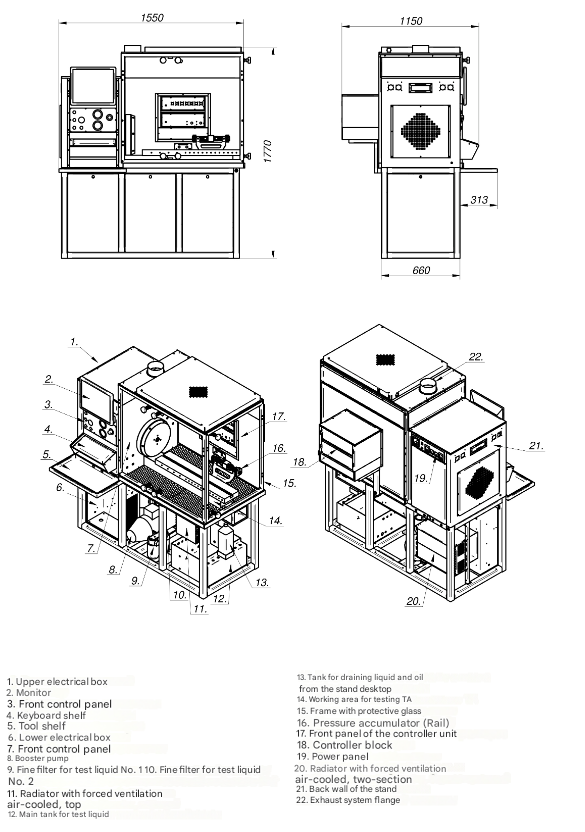

Dimentions W 1110,H 1610,D 1210 mm
Total weight (netto 780 kg),
(brutto 840 kg)
