CRISTINA

High-quality testing and assembly complex of BOSCH, DENSO and DELPHI Common Rail injectors.

Price: on request
CRISTINA. High-quality testing and assembly complex of BOSCH, DENSO and DELPHI Common Rail injectors.

CRistina repair and testing complex is dedicated to assembing and disassembling Bosch, Denso and Delphi Common Rail inejctors according to manufacturer specified steps and mechanical tolerances. The complex offers the ability to measure relevant mechanical tolerances of the injector parts and electrical characteristics of the electromagnet. The assembly/disasembly steps and critical measurement points are presented by convenient step-by-step instructions descriptions and relevant images of the work process itself.

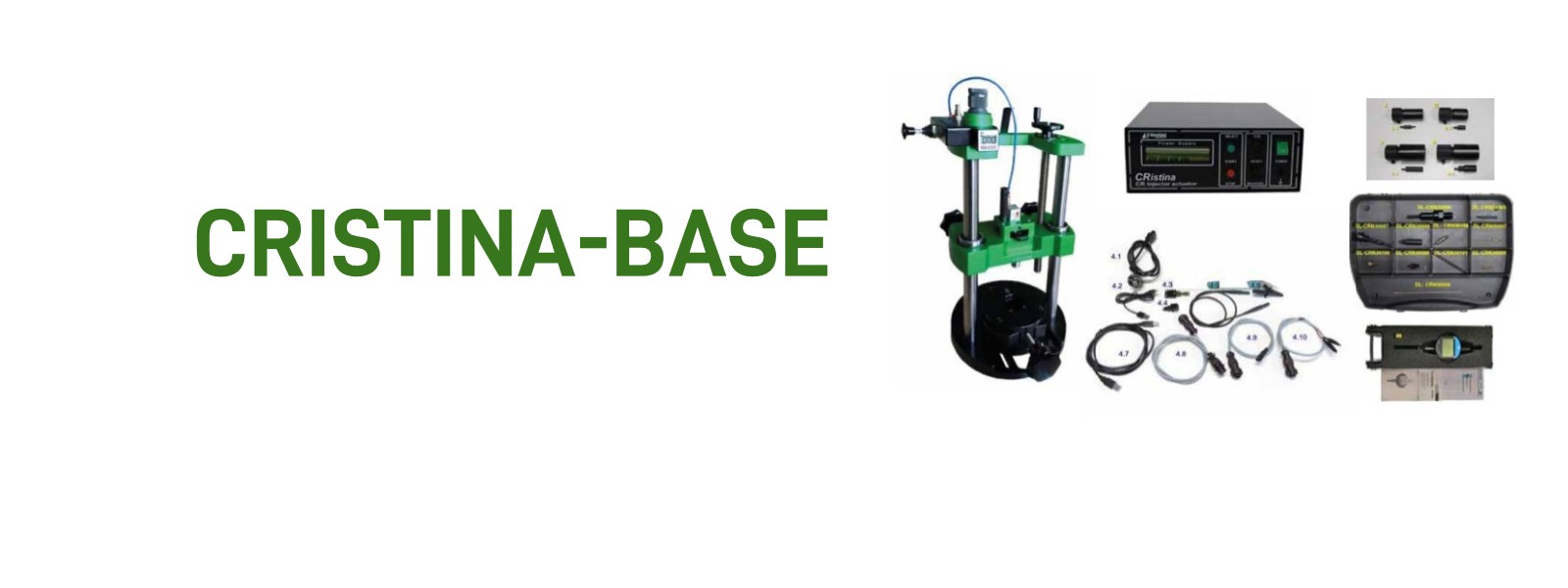

BASIC SET:

    1. DL-CRN005 Stand Cristina for measuring and adjusting the parameters of the injector
    2. DL-KIP0025 Digital indicator with connection for PC
    3. DL-KIP0028 Adapter with cable for connect measure head and PC
    4. DL-CRN50094 Set of probes (11pcs.)
    5. DL-CRN50099 Set of adapters (4pcs.)
    6. DL-CRistina Valve stroke actuator with set of cables :
      6.1. Power supply cable 220V.
      6.2. Extension cable-adapter
      6.3. Universal cable adapter for cars.
      6.4. Cable adapter for trucks
      6.5. Earth lead
      6.6. Crocodile type connector for earth lead
      6.7. Plug for resistance calibration
      6.8. Cable USB A plug; USB B plug
      6.9. Cable USB A plug; USB B micro plug
    7. Software CRistina
    8. Manual

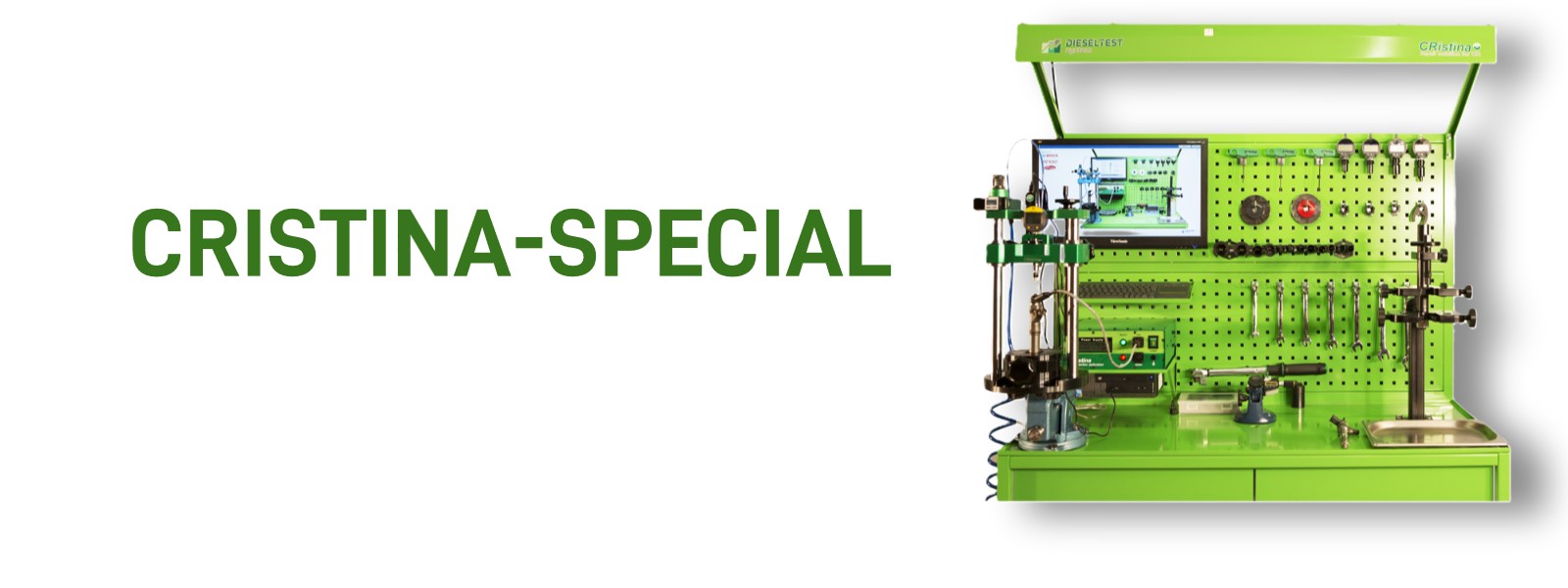

FULL SET:

    1. DL-CRN005 Stand Cristina for measuring and adjusting the parameters of the injector
    2. DL-KIP0025 Digital indicator with connection for PC
    3. DL-KIP0028 Adapter with cable for connect measure head and PC
    4. DL-CRN50094 Set of probes (11pcs.)
    5. DL-CRN50099 Set of adapters (4pcs.)
    6. DL-CRistina Valve stroke actuator with set of cables :
      6.1. Power supply cable 220V.
      6.2. Extension cable-adapter
      6.3. Universal cable adapter for cars.
      6.4. Cable adapter for trucks
      6.5. Earth lead
      6.6. Crocodile type connector for earth lead
      6.7. Plug for resistance calibration
      6.8. Cable USB A plug; USB B plug
      6.9. Cable USB A plug; USB B micro plug
    7. Software CRistina
    8. Manual
    9. D-MV200UM Electronic microscope,
    10. D-07147122 Torque wrench 1/2″ , 20-100 N,
    11. DL-CR50104 Kit of tools to extract and re-place the fiber ring of the CR nozzleholders.
    12. DL-UNI30390 CR nozzle holder wrench, 30mm.
    13. DL-UNI30389 CR nozzle holder wrench, 29mm.
    14. DL-UNI30435 Wrench for opening the solenoid of the CR (Cummins) nozzleholder, 28
    15. DL-UNI30434 Wrench for opening the solenoid of Common Rail Man nozzleholder,27
    16. DL-UNI50046 Dismounting wrench for CR Nippodenso injector ring-nut.
    17. DL-UNI30545 Dismounting wrench for CR Siemens injector ring-nut
    18. DL-UNI50050 Wrench set for mounting CR injector solenoid nut-octagon 16, 17.5 Hexagon 14, 15, 17, 19, UNI30382 Hexagonal open wrench with dinamometric connection of 1/2″.
    19. DL-CR30561 Special bit SW 10.
    20. DL-TORX10 Wrench for mounting and dismounting internal ring-nut 10mm, torx, Bosch CR
    21. DL-TORX12 Wrench for mounting and dismounting internal ring-nut 12mm, torx, Bosch CR
    22. DL-AP2 Tweezers, non-magnetic
    23. DL-08CR5-244 Set of shims 55 pcs
    24. DL-09CR5-219 Set of shims 55 pcs
    25. DL-11CR5-236 Set of shims 55 pcs
    26. DL-12CR5-245 Set of shims 130 pcs
    27. DL-16CR5-232 Set of shims 60 pcs.
    28. DL-18CR5-271 Set of shims 55 pcs
    29. DL-19CR5-273 Set of shims 55 pcs.
    30. DL-25CR5-288 Set of shims 55 pcs.
    31. DL-28CR5-287 Set of shims 110 pcs
    32. DL-125BIZON Bench vice L=250mm
    33. DL-STN Special worktable:
      33.1. Drawers
      33.2. Perforated backplate
      33.2. Lamp with mounting brackets
      33.3. Shelf for notebook
      33.4. Shelf for device
    34. PC or notebook
    35. DL-KIP010 Digital indicators 0,01 (1pc.)
    36. DL-KIP011 Digital indicator 0,001(2pc.)
    37. DL-KIP012 Digital indicator 25,4 mm, 0,001mm (1 pc.)
    38. DL-ST-01 Special clamp device.
    39. D-07147120 Torque wrench 1/4″-1/2″ , 1-25 N
    40. D-1012020001 Stainless steel tray
    41. D-M035 Digital micrometer
    42. DL-M040 Micrometer stand
    43. DL- CRN50113 Set of protractors,
    44. DL-TX10 Т-key Тх 10.
    45. DL-TX25 Т-key 2,5 mm.
    46. DL-TX30 Т-key 3 mm.
    47. DL-TR13U Wrench 13 mm.
    48. DL-TR14U Wrench 14 mm.
    49. DL-TR15U Wrench 15 mm.
    50. DL-TR19U Wrench 19 mm.
    51. DL-CR50052 Device for refilling the hydro compensator of Bosch piezo injector
    52. DL- UNI50043 Universal clamp for fixation in vise CR injectors
    53. DL-UNI50032 Clamp for fixation in vise CR Denso
    54. DL-1219KIT Set of wrenches/ring spanners 12mm, 13mm, 14mm, 15mm, 17mm, 19mm
    55. DL-UNI30776 Adapter dor torque wrench

System requirements for the PC:

Processor: Intel Core 3i or better.
4 GB RAM
Windows 7/10
