Common-Rail

DL-CR10030

Basic equipment kit for testing CR injectors

Price: on request

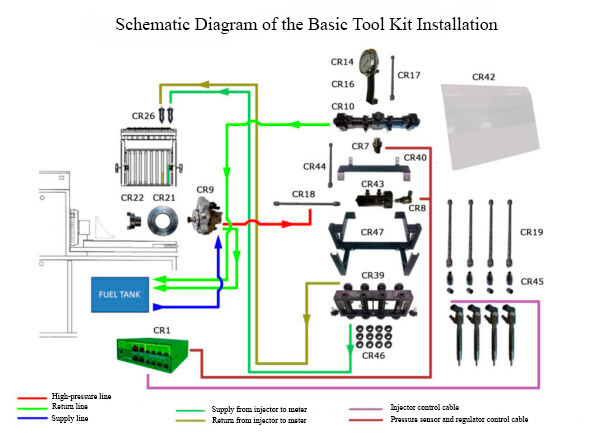

DL-CR10030. Basic equipment kit for testing CR injectors

The basic equipment kit is designed to test Common Rail injectors of different manufacturers (Bosch, Denso, Delphi, VDO (Siemens) Cummins, Caterpillar, AZPI.

Basic equipment kits for testing CR injectors using the measuring unit
A kit of basic equipment for testing CR injectors without a CR-tester DL-CR10020
A kit of basic equipment for testing CR injectors without a CR-tester and injection pump CP3 DL-CR00088 DL-CR10021
A kit of basic equipment for testing CR injectors with the FLAGMAN CRT-5000 controller DL-CR10030
A kit of basic equipment for testing the CR injectors with the FLAGMAN CRT-5000 controller without the CP3 DL-CR00088 injection pump kit DL-CR10031
Complete kits of basic equipment for testing the CR injectors with the measuring unit, as well as with the possibility of connection to the electronic measuring unit FLAGMAN-MUFI-CR and retrofitting with the FLAGMAN Code coding system
A kit of basic equipment for testing CR injectors with the FLAGMAN CRT-5040 controller DL-CR10040
A kit of basic equipment for testing the CR injectors with the FLAGMAN CRT-5040 controller without the CP3 DL-CR00088 injection pump kit DL-CR10041

The injection pump kit DL-CR00088 is used with a working pressure of 1800 bar.

The injection pump kit DL-CR00139 is used with a working pressure of 2400 Bar and is available on request. Also, when installing DL-CR00139 in the basic equipment kit, the sensor and pressure regulator must be replaced by 2400 Bar and 2200 Bar, respectively.

CR Injector Test Kit, DL-CR10030
Name Purt Number Quantity
Electronics
Common Rail Injector Test Controller CRT-5040 1 pc
Injector Cable Extension: “Injector” Socket — 1.5 m DL-CR10032 1 pc
High-Pressure Regulator Connection Cable (HP1, HP2, HP3): “REG HP” Socket — 2.0 m DL-CR10033 1 pc
Low-Pressure Regulator Connection Cable (LP1, LP2): “REG LP” Socket — 2.0 m DL-CR10034 1 pc
“Bosch” Type 1 Pressure Sensor Connection Cable: “Sensor” Socket — 2.0 m DL-CR10035 1 pc
“Bosch” Type 2 Pressure Sensor Connection Cable: “Sensor” Socket — 2.0 m DL-CR10036 1 pc
Connectors for DIY Cables to Sockets: “Protection”, “Tank t°C”, “Reg t°C”, “Cycle”, “Pump”, “Inverter”, “Rpm” DL-CR10037 7 pc
Reed Relay for Protection Connection: “Protection” Socket DL-CR10038 1 pc
Fluid Temperature Sensor (Tank): “Tank t°C” Socket DL-CR10039 1 pc
*Injector Return Flow Temperature Sensor: “Reg t°C” Socket DL-CR10042 4 pc
Universal BOSCH Injector Cable DL-CR10043 1 pc
Delphi Injector Cable (C2i, C3i) DL-CR10044 1 pc
Delphi Injector Cable (C3i) DL-CR10045 1 pc
BOSCH, SIEMENS Injector Cable DL-CR10046 1 pc
BOSCH Injector Cable DL-CR10047 1 pc
Truck Injector Cable (Cap Type) DL-CR10048 1 pc
Universal Truck Injector Cable (Plug Type) DL-CR10049 1 pc
220V Power Cable – 1 pc
USB Cable – 1 pc
Passport / Manual / Technical Description – 1 pc
Cascade Software – 1 pc
Mechanics
Pressure Sensor 1800 bar DL-CR10050 1 pc
*Pressure Sensor 2200 bar DL-CR10052 1 pc
*Pressure Sensor 2400 bar DL-CR10053 1 pc
Pressure Regulator 1800 bar DL-CR10051 1 pc
*Pressure Regulator 2200 bar DL-CR10054 1 pc
*Pressure Regulator 2700 bar DL-CR10055 1 pc
Small “Rail” Pressure Accumulator DL-CR30180 1 pc
“Rail” Pressure Accumulator (for 2 regulators) DL-CR30181 1 pc
*”Rail” Pressure Accumulator (for 2 regulators, with cooling) DL-CR30188 1 pc
*Safety Valve for Pressure Accumulator 1800 bar DL-CR10056 1 pc
*Safety Valve for Pressure Accumulator 2400 bar DL-CR10057 1 pc
High-Pressure Hoses M14 x 14 x 400 mm / M12 x 14 x 400 mm for Injectors DL-TVD41414 / DL-TVD41214 4 pc
High-Pressure Hose for Manometer — M14 x 14 x 300 mm DL-TVD31414 1 pc
High-Pressure Hose for Rail Connection — M14 x 14 x 300 mm DL-TVD31414 1 pc
Adapter M14 to M12 / M12 to M12 DL-UNI50083 / DL-UNI50087 4 pc
Injector Holder Frame DL-CR10015 1 pc
Nozzle Clamp Cup — 9 mm DL-UNI30997 2 pc
Injector Frame Holder Bracket DL-CR10025 1 pc
Teflon Hose for Injectors — 6 mm Diameter P1004 16 m
DENSO Return Line Connection Kit: Banjo Fitting, M8 x 1 mm Bolt, Copper Washers (2 pcs) DL-CR10060 4 set
Injector Return Flow Measurement Fitting Kit DL-24CRM 1 set
“Rail” Holder Bracket (on Frame) DL-CR10028 1 pc
Protective Guard Mounting Bracket Kit DL-CR10011 1 set
Protective Cover (Plexiglass) + 2 Holder Brackets DL-CR10006 1 pc
Foam Suppressors DL-UNI30156 8 pc
Fitting 1/4″ x 6 mm 34-RL310602 8 pc
Manometer 0-2500 bar DL-CR14P2500 1 pc
Adapter 1/2″ to M14 (for Manometer) DL-UNI30287 1 pc
Manometer Holder Bracket DL-KM2500 1 pc
Manometer Washer / Gasket DL-SM 1 pc
Fitting (Banjo 12 mm + M12 Bolt) DL-CR20062 1 set
13 mm Clamps for Rubber Hoses (Ø8 mm) DL-CR20066 1 pc
Rubber-Metal Washer, M12 D-GM1537AN 2 pc
CP3 High-Pressure Pump Test Kit, DL-CR00088 — 1800 bar
High-Pressure Pump CP3 / CP1H3 — 1800 bar DL-CR10088 1 pc
High-Pressure Hose for Pump — M14 x 14 x 500 mm DL-TVD51414 1 pc
Pump Mounting Adapter (for Bracket) DL-UNI30428 / DL-UNI30465 1 pc
Pump Drive Coupling DL-M24 / DL-M19 1 pc
Rubber Fuel Supply Hose for Pump — 8 mm Diameter D-18-806-008 2,4 m
Fitting for Pump (Banjo 12 mm + M12 Bolt) DL-CR20062 1 set
13 mm Clamps for Rubber Hoses (Ø8 mm) DL-CR20066 4 pc
M12x1.5 Cone Fitting — for 8 mm Hose DL-UNI30112 3 pc
Rubber-Metal Washer, M12 D-GM1537AN 5 pc
*CP3 High-Pressure Pump Test Kit, DL-CR00139 — 2400 bar
High-Pressure Pump CP3 / CP1H3 — 2400 bar DL-CR10139 1 pc
High-Pressure Hose for Pump — M14 x 14 x 400 mm DL-TVD51414 1 pc
Pump Mounting Adapter (107 mm Diameter) DL-UNI30428 1 pc
Pump Drive Coupling DL-M24 1 pc
Rubber Fuel Supply Hose for Pump — 8 mm Diameter D-18-806-008 2 m
Banjo Fitting for Pump — 12 mm with M12 Bolt DL-CR20062 2 set
13 mm Clamps for Rubber Hoses (Ø8 mm) DL-CR20066 4 pc
M12x1.5 Cone Fitting — for 8 mm Hose DL-UNI30112 3 pc
Rubber-Metal Washer, M12 D-GM1537AN 5 pc

*Available on Special Order!



Parameter Value / Range Accuracy / Notes
Fuel Pressure Control Range 0 – 2400 bar ±5 bar
Number of Injectors Tested Simultaneously 4 —
Injector Opening Pulse Frequency 60 – 1500 min⁻¹ (rpm) —
Injector Opening Pulse Duration 100 – 3000 μs —
Fuel Temperature Control in Tank 0 – 100 °C ±1 °C
Fuel Temperature Monitoring for Injectors Individual sensor At each injector
Power Supply Voltage ~220 V ±15%
Power Consumption ≤ 1000 W Max. 1000 W
Net Weight 12 kg —
