Microscopes and additional equipment

DL-UNI20032

Microscope Kit HDMI USB 1080P FHD 37MP

Price:
DL-UNI20032. Microscope Kit HDMI USB 1080P FHD 37MP

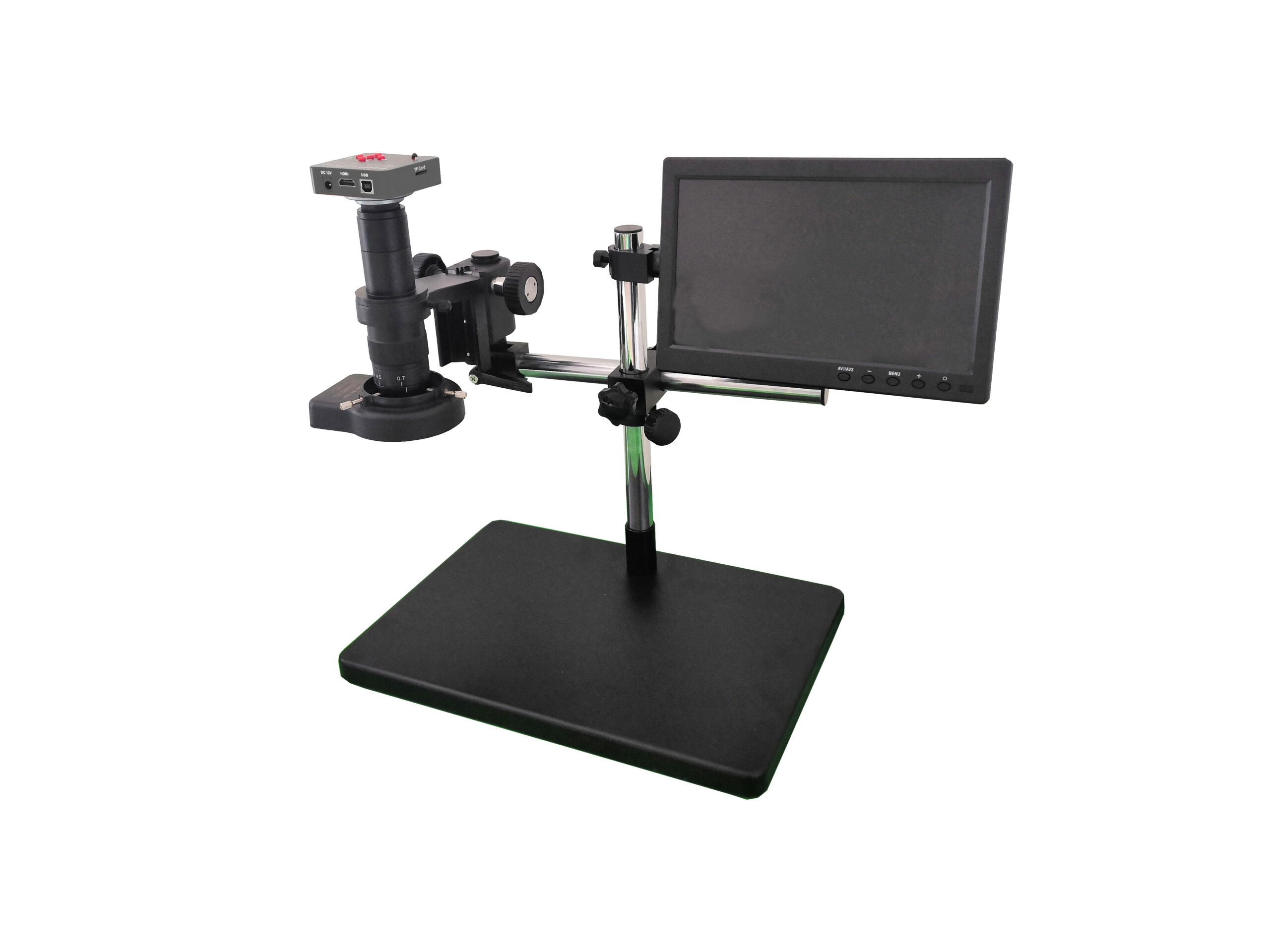

Set with industrial microscope HDMI USB 1080P FHD 37MP , monitor, extended stand and backlight
The microscope has a clear image and high resolution

Brief technical data:
1. Microscope magnification: 180X C-MOUNT
2. Working distance : 50-700mm
3. Connect to monitor via ports: HDMI/USB
4.Working distance: 95mm (maximum working distance 16cm)

ATTENTION! All equipment from the delivery set is sold separately!

Комплект поставки DL-UNI20026
Name Article Quantity Photo
Industrial electronic microscope with power supply DL-UNI20011 1 pc
tripod holder for microscope DL-UNI20019 1 pc
Diode lamp for microscope DL-UNI20018 1 pc
Monitor with power supply DL-UNI20021 1 pc
Monitor holder dia.25mm DL-UNI20022 1 pc

ATTENTION! All equipment from the delivery set is sold separately!

Microscope electronic industrial HDMI USB 1080P FHD 37MP

Photo / video shooting
Additional Functions: Add Guide Lines, Freeze Image, Mirror Image, Image Rotate, Digital Zoom
Housing: aluminum alloy
Matrix: Panasonic
Matrix resolution 37.0 MP
Frame rate: at 1920*1080 / 60fps
Outputs: USB, HDMI, TF card, infrared sensor for remote control
Power supply: DC-12V/1A
Max TF card capacity: 64G
HDMI Image Resolution: 8168*6128 4:3 (50MP) 8168*4592 16:9 (37MP) (for TF card),
USB image resolution: 1920*1080 (for PC USB)
Video resolution: 1920*1080 / 60fps for HDMI, 1920*1080 / 30fps 1280*720 / 30fps 640*480 / 30fps 320*240 / 30fps for USB
Video Format: MP4
Image Format: JPG
Remote control
Language support: Russian, Chinese, English, French, Spanish, Portuguese, German, Italian, Japanese
Lens: 180X C-MOUNT magnification
Working distance: 95mm (maximum working distance 16cm)
Zoom Ratio: 6.5:1
