Surface grinding machine with movable worktable

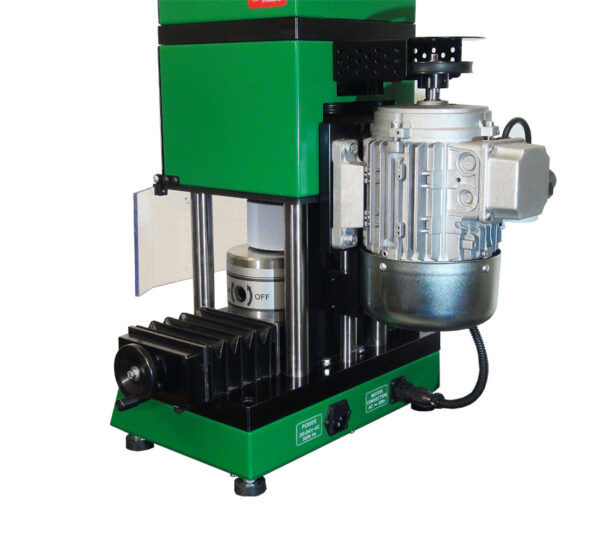

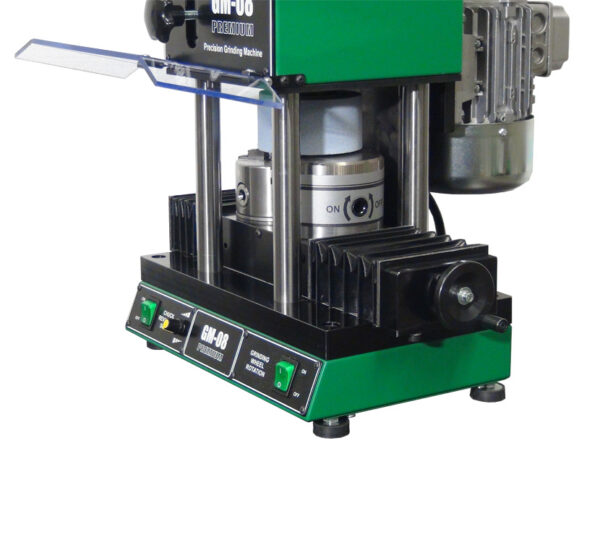

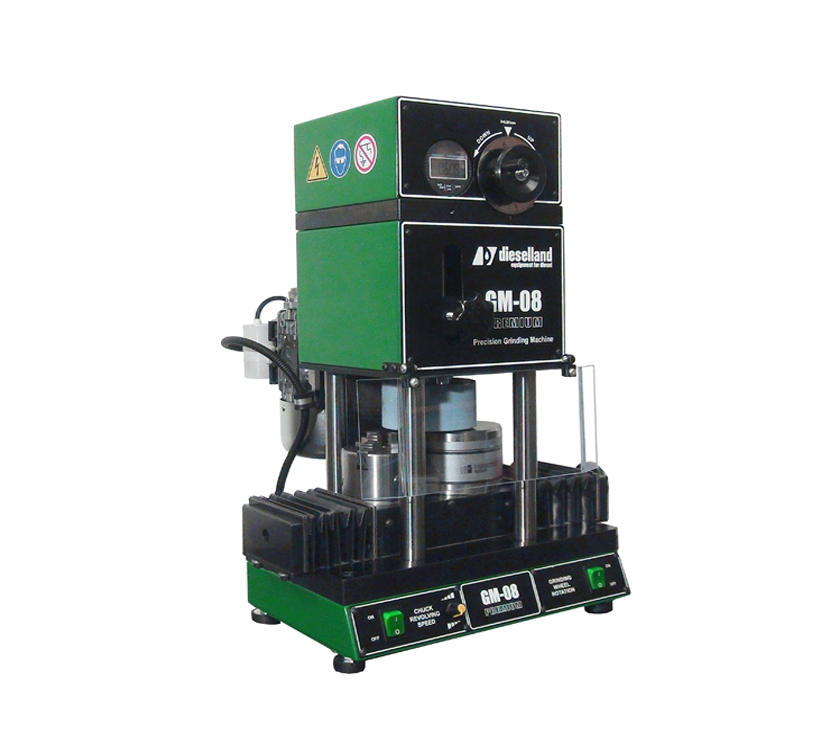

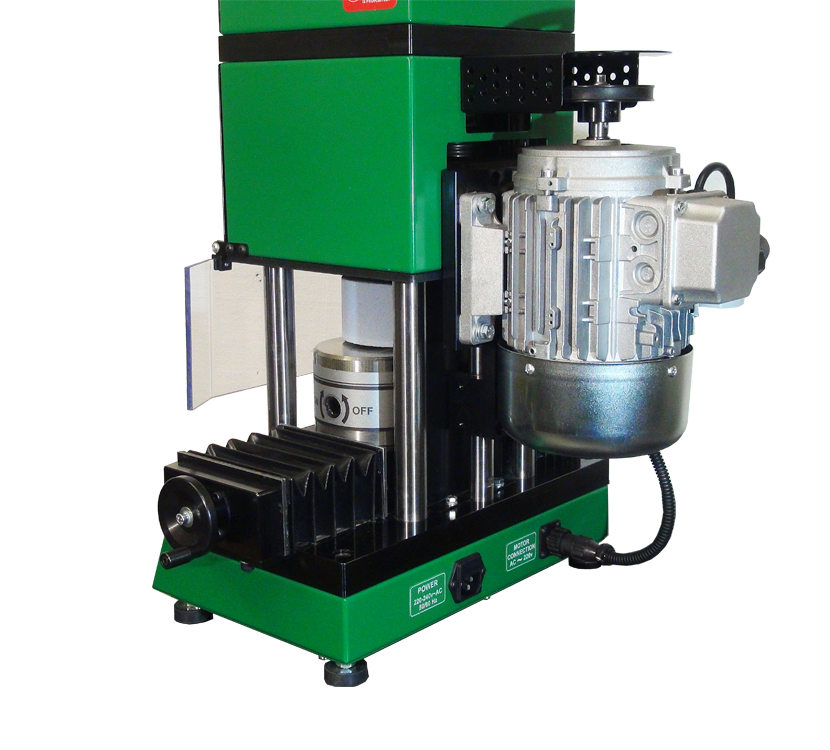

GM-08 PREMIUM surface grinding machine with a lower movable worktable, guideway bellows protection, and an electric chuck drive.
Designed for grinding adjusting shims, nozzle cases and other parts of fuel equipment
| Basic set | ||
| Article | Name | Amount |
| GR-08 PREMIUM | Surface grinding machine GR-08 PREMIUM | 1 pc |
| – | Hex key for magnetic table | 1 pc |
| – | Square wrench for chuck | 1 pc |
| – | Bracket with solid tip for grinding wheel | 1 pc |
| – | Washer jig | 1 pc |
| – | Power cable | 1 pc |
| – | Manual | 1 pc |
The use of wheels with mandrels makes it possible to quickly change the wheel to a tool of a different grit, depending on the workpiece. To use the Grinding wheel with mandrel on early GM-08 machines, it is necessary to replace the drive shaft with a DL-GM31280. The mandrel for grinding wheels must be ordered separately. With a one-time purchase of an grinding wheel and a wheel holder -mandrel, the kit is supplied with a machined wheel surface. (Processing of the wheel in assembly with the mandrel ensures the maximum reduction of vibrations during operation and improves the quality of the processing of parts).
| Additional equipment of the machine | |||
| Article | Name | Characteristics | Image |
| DL-UNI20205 | Grinding wheel for GM-08 straight *mandrel sold separately |
Landing diameter 20 mm Outside diameter 100 mm Grit 80 grit |
 |
| DL-UNI20206 | Grinding wheel for GM-08 straight *mandrel sold separately |
Landing diameter 20 mm Outside diameter 100 mm Grit 60 grit |
 |
| DL-UNI20207 | Grinding wheel for GM-08 straight *mandrel sold separately |
Landing diameter 20 mm Outside diameter 100 mm Grit 40 grit |
 |
| DL-UNI20208 | Grinding wheel for GM-08 conical | Landing diameter 32 mm Outside diameter 125 mm Grit 80 grit |
 |
| DL-GM50248 | Modernized machine grinding wheel holder- mandrel GM-08 |  |
|
| DL-GM31280 | Drive shaft with a cone fit under the mandrel for the modernized GM-08 machines manufactured before 04.2020 |  |
|
| DL-GM50263 | Wheel remover with mandrel from the cone of the shaft of the machine GM-08 |  |
|
| Technical data | |
| Name | Amount |
| Motor power | 0,37 kW |
| Scale | 1 micron |
| Vertical movement of the wheel | 25 mm |
| Wheel revolutions | 3600 rpm |
| Grit | 80 grit |
| Height / length / width | 505/370/340 mm |
| Horizontal movement | 110 mm |
| Chuck working diameter | 2-22mm |
| Supply voltage | V ~220 V ±15% |
| Weight, net/gross | 60 kg /68 kg |
