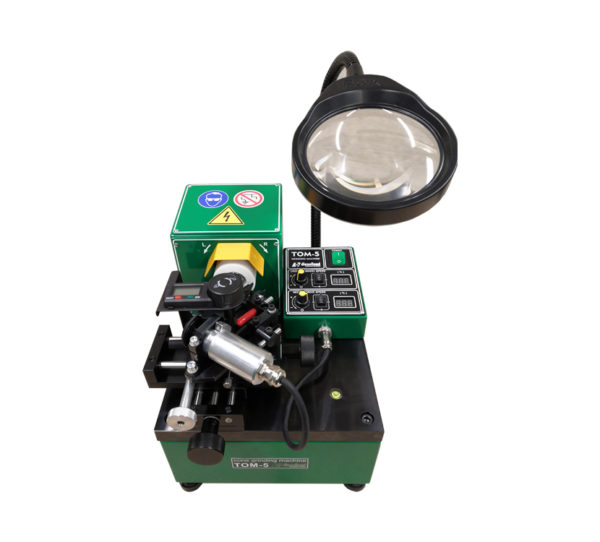

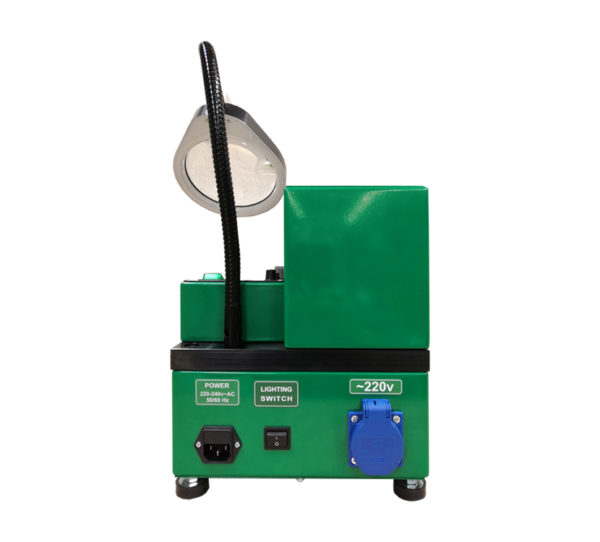

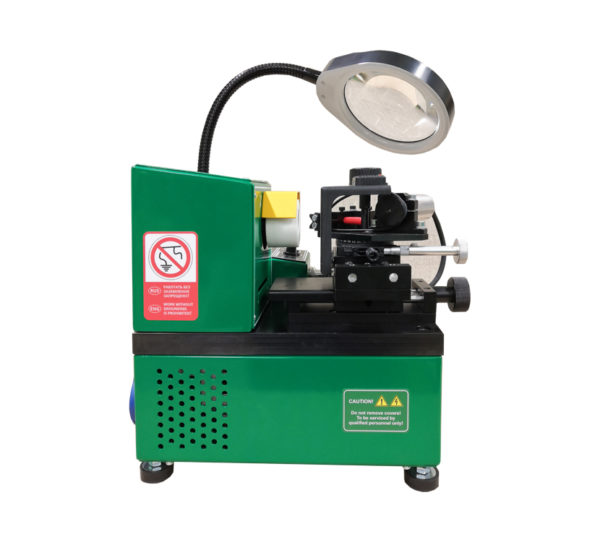

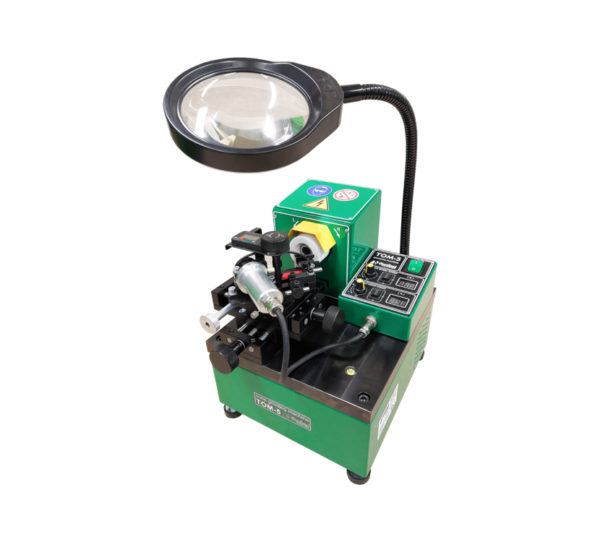

A grinding machine for dressing laps and other bodies of revolution
The TOM-5 machine is designed for sharpening laps and other bodies of rotation (drills, cutters, cores, etc.) with any range of angles by installing them in prism holders. The machine uses an abrasive (sharpening) stone in the form of a cup as its working tool.
| Basic delivery package | ||
| Артикул | Article number | Quantity |
| TOM-5 | A grinding machine for dressing laps and other bodies of revolution | 1 pc |
| DL-NG31246 | Stone Correction Pencil Holder | 1 pc |
| DL-NG31309 | Pencil for straightening the abrasive wheel | 1 pc |
| DL-NG31196 | Pulley for installing the lapping tool Ø 6.8 mm | 1 pc |
| DL-NG31264 | Pulley for installing sprayer laps Ø 3 mm | 1 pc |
| DL-NG31264-01 | Pulley Ø 4 mm | 1 pc |
| DL-NG31264-02 | Pulley Ø 5 mm | 1 pc |
| DL-NG31515 | Caliber: 6×60 mm | 1 pc |
| – | 220 Volt Power Cable | 1 pc |
| – | Passport / technical description / instruction manual / warranty card | 1 pc |
Main technical characteristics
| Name | Parameters |
| Greatest lateral displacement | (+/- 50mm) |
| Greatest longitudinal displacement | (+/- 50mm) |
| Angle of rotation of the working carriage | 270° |
| Angle measurement range | 360° |
| The price of dividing the protractor | 0,1° |
| Type of electronic protractor | Absolute |
| Supply voltage | ~ 220 V±15% |
| Grain size of the abrasive stone (chips) | 100 grit |
| Main drive electric motor power | 0,2 kW |
| Maximum power consumption of the machine | 0,3 kW |
| The number of revolutions per minute of the electric motor | 0 – 12000 |
| Number of revolutions per minute of the drive shaft | 0 – 2000 |
| Dimensions (depth x width x height), mm | 335 х 250 x 300 |
| Dimensions with lamp (L x W x H), mm | 335 х 250 x 450 |
| Machine weight (net), kg | 22 |
