TOM2 CP-230

Grinding machine for lapping tool refurbishment

Price: on request

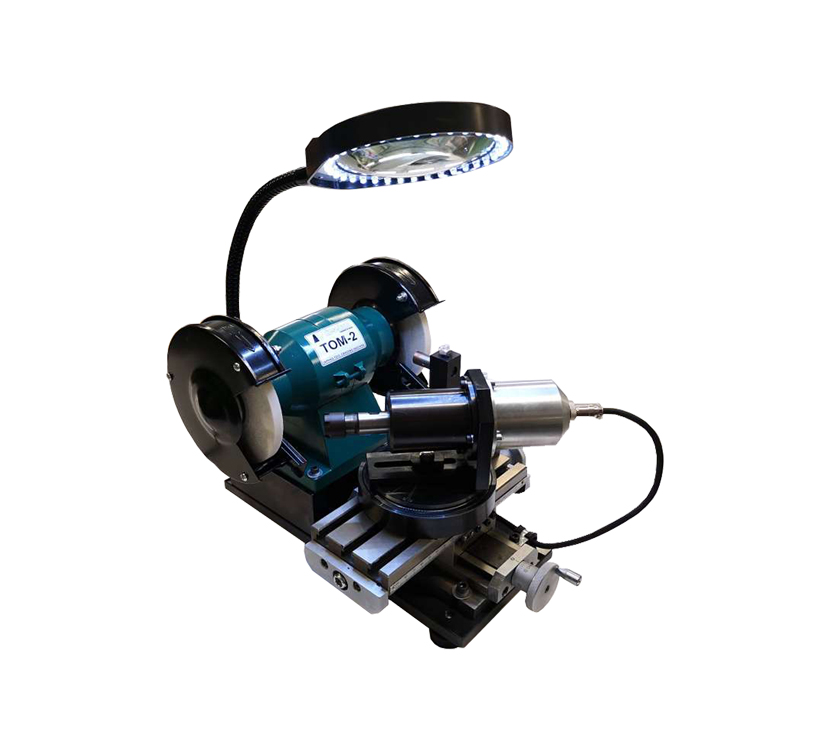

TOM2 CP-230. Grinding machine for lapping tool refurbishment

The TOM2 CP-230 model machines are designed for sharpening rotary bodies (drills, milling cutters, center punches, lapping tools, etc.) with an angle in the range of 82 to 124 degrees by clamping them in a collet chuck. The device is also intended for manually sharpening drills, milling cutters, center punches, chisels, knives, bits, and other cutting and locksmith tools. Grinding (sharpening) wheels are used as the working tool in the sharpening machine.

  • TOM2 CP-230 Machine
  • Illumination lamp
  • Magnifying glass
  • Dressing tool holder for the grinding wheel
  • Dressing tool for the grinding wheel
  • Wrench for tightening the collet chuck

Main Technical Specifications:

  • Maximum cross travel: 100 mm
  • Maximum longitudinal travel: 70 mm
  • Table working surface width: 200 mm
  • Table working surface length: 90 mm
  • Power supply voltage: ~220 V ±15%
  • Motor power: 0.23 kW
  • Machine dimensions (L x W x H): 400 x 280 x 260 mm
  • Machine weight: 21 kg
  • Motor speed: 2760 rpm
  • Drive shaft speed: 200 rpm
