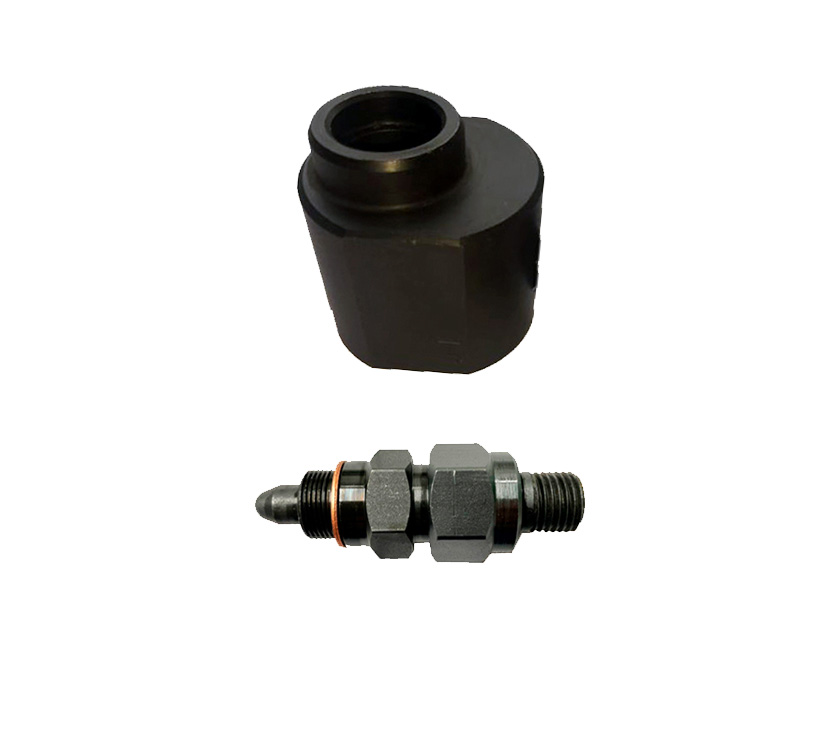

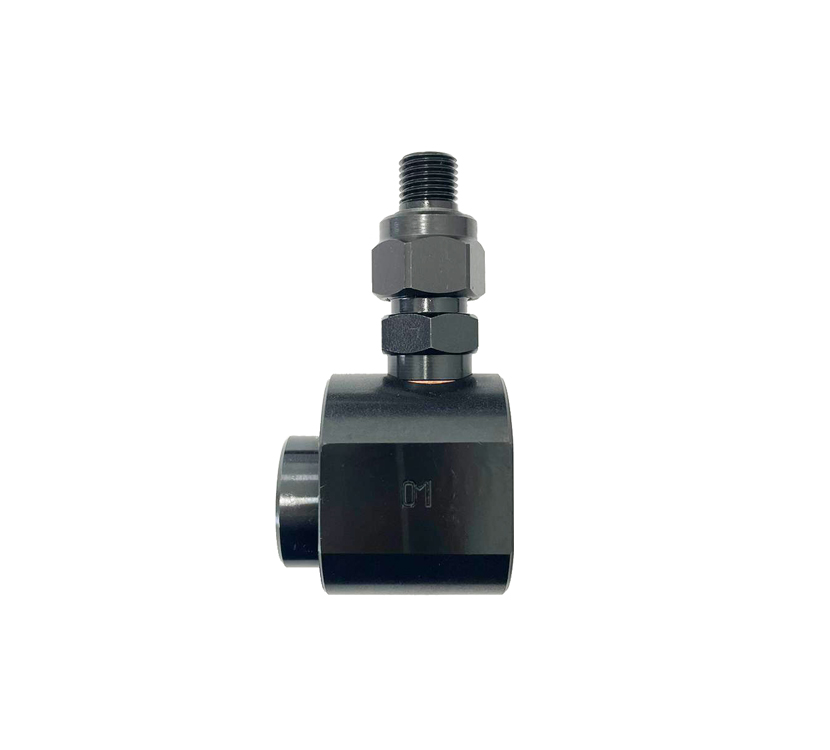

DL-001 (UIS31524). Adapter for testing mechanical injectors of unit pumps MB ACTROS and MB ATEGO Ø26
Adapter for testing mechanical injectors of unit pumps MB ACTROS and MB ATEGO
Size Ø26
Fuel is supplied from the high-pressure pipe through the side inlet fitting.
Its front part must be inserted into the fuel inlet of the injector, and then firmly tightened to the injector.
Do not overtighten or undertighten the side inlet fitting.
The return flow from the injector passes through a quick-connect fitting with a Ø 6 mm hose connection.
Size Ø26
Fuel is supplied from the high-pressure pipe through the side inlet fitting.
Its front part must be inserted into the fuel inlet of the injector, and then firmly tightened to the injector.
Do not overtighten or undertighten the side inlet fitting.
The return flow from the injector passes through a quick-connect fitting with a Ø 6 mm hose connection.
Note! The DL-K7 fuel spray collector (Ø 7 mm) must be ordered separately.
