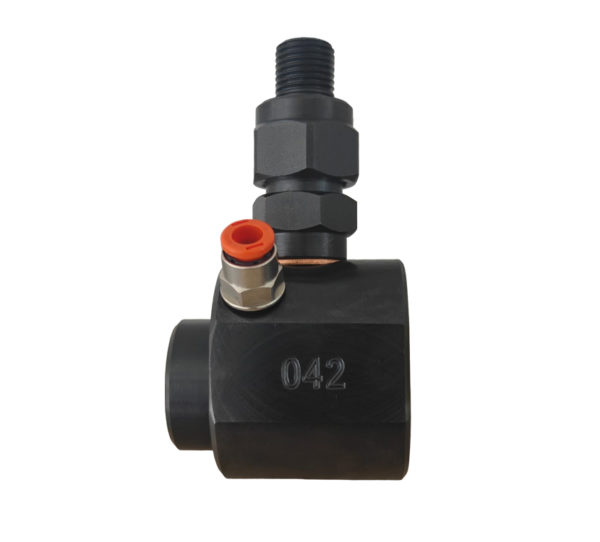

DL-042 (CR31900). Adapter for Heavy-Duty Bosch DHIM Fuel Injectors, fits Doosan, Yuchai Ø26
Adapter for testing truck injectors on a test bench or on a manual press with a signal simulator
Fuel is supplied from the high-pressure pipe via a side-entry fitting.
To install the adapter, place its front part into the injector fuel inlet port and then tighten it firmly against the injector.
Do not over-tighten or under-tighten the side-entry fitting.
Return fuel from the injector is discharged through a quick-connect fitting (Ø 6 mm).
Note! The DL-K7 fuel spray collector (Ø 7 mm) must be ordered separately.
