NEW

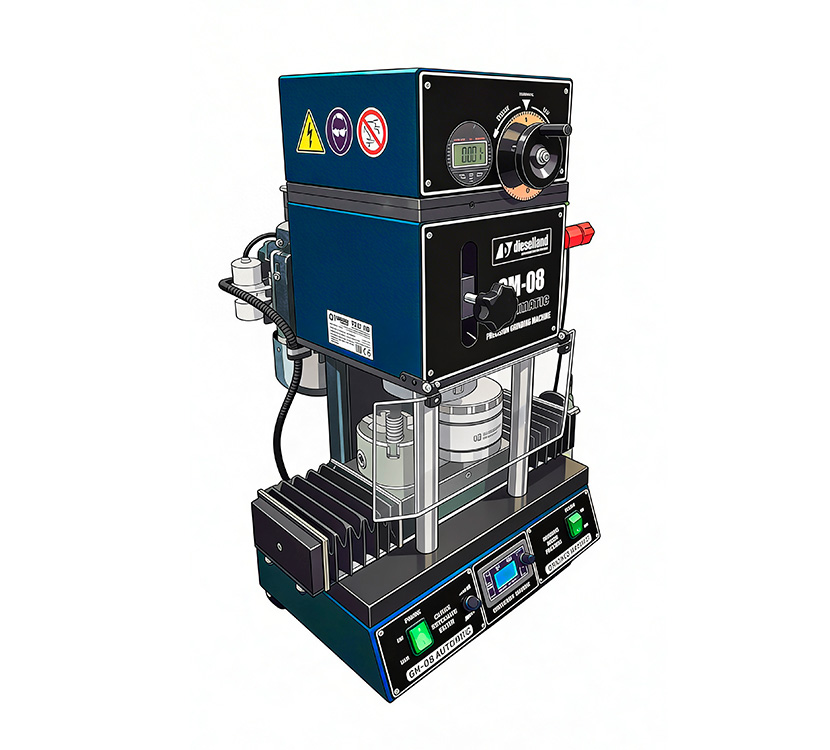

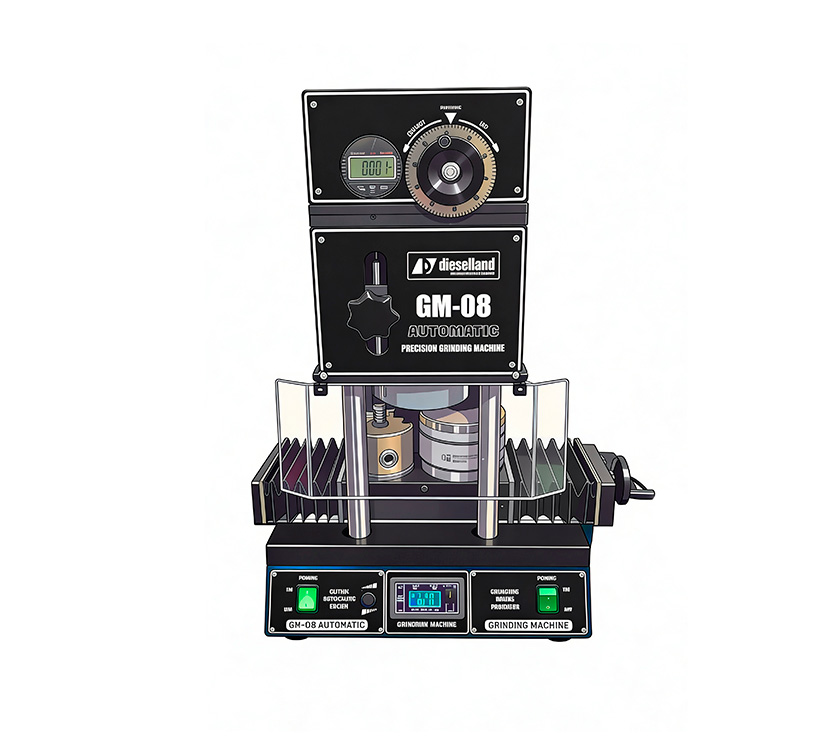

GM-08 Automatic

Surface grinding machine with rotary chuck and automatic control of the lower movable table

Price: on request
GM-08 Automatic. Surface grinding machine with rotary chuck and automatic control of the lower movable table

GM-08 Automatic – Surface grinding machine with rotary chuck and automatic control of the lower movable table

The machine is equipped with a controller that allows the movable table to be operated in either automatic or manual mode. Several preset travel patterns for the lower table are available, and individual programming is also supported.

Standard Delivery Set
GM-08 Automatic. Surface grinding machine with rotary chuck and automatic control of the lower movable table
Article Name Quantity
GM-08 Automatic Surface grinding machine GM-08 (equipped with grinding wheel DL-UNI20205, grit 80) 1 pc
– Hex key for magnetic table 1 pc
– Square key for chuck 1 pc
DL-GM50321 Bracket with solid tip for wheel dressing 1 pc
– Washer holder jig 1 pc
– Power cable 1 pc
– Manual 1 pc

The use of wheels with mandrels makes it possible to quickly change the wheel to a tool of a different grit, depending on the workpiece. To use the  Grinding wheel with mandrel on early GM-08 machines, it is necessary to replace the drive shaft with a DL-GM31280. The mandrel for grinding wheels must be ordered separately. With a one-time purchase of an grinding wheel and a wheel holder -mandrel, the kit is supplied with a machined wheel surface. (Processing of the wheel in assembly with the mandrel ensures the maximum reduction of vibrations during operation and improves the quality of the processing of parts).

Additional equipment of the machine
GM-08 PREMIUM. Surface grinding machine with movable worktable
Article Name Characteristics Image
DL-UNI20205 Grinding wheel for GM-08 straight
*mandrel sold separately		 Landing diameter 20 mm
Outside diameter 100 mm
Grit 80 grit
DL-UNI20206 Grinding wheel for GM-08 straight
*mandrel sold separately		 Landing diameter 20 mm
Outside diameter 100 mm
Grit 60 grit
DL-UNI20207 Grinding wheel for GM-08 straight
*mandrel sold separately		 Landing diameter 20 mm
Outside diameter 100 mm
Grit 40 grit
DL-UNI20208 Grinding wheel for GM-08 conical Landing diameter 32 mm
Outside diameter 125 mm
Grit 80 grit
DL-GM50248 Modernized machine grinding wheel holder- mandrel GM-08
DL-GM31280 Drive shaft with a cone fit under the mandrel for the modernized GM-08 machines manufactured before 04.2020
DL-GM50263 Wheel remover with mandrel from the cone of the shaft of the machine GM-08
