DL-012 (CR30036)

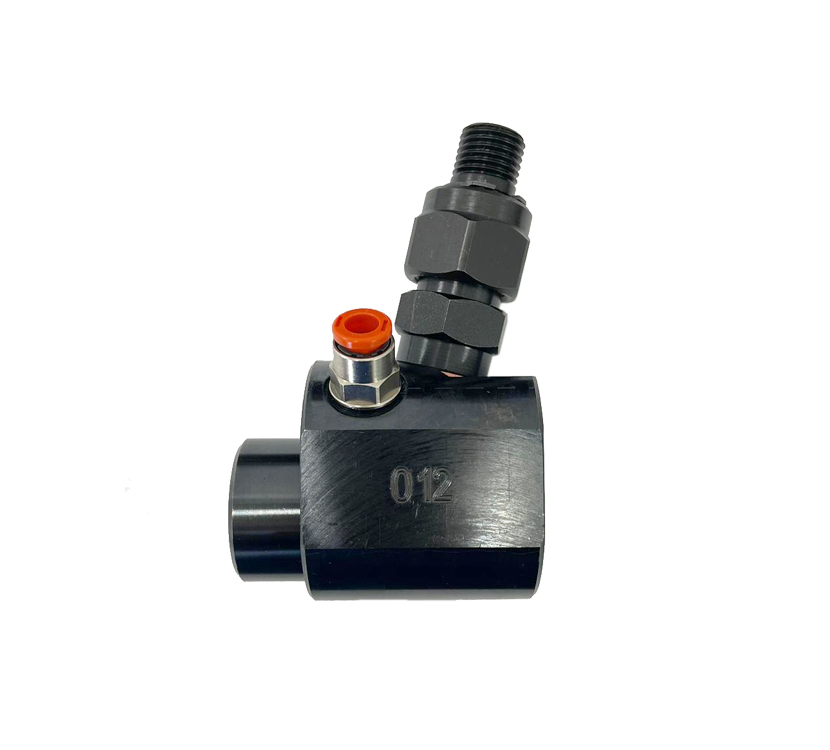

Adapter for testing truck injectors DL-012

Price: on request
DL-012 (CR30036). Adapter for testing truck injectors DL-012
Old article DL-0203

Adapter for testing truck injectors for  CRIN BOSCH SISU Ø 26,6mm 0445120063 and others
Fuel is supplied from the high-pressure pipe through the side inlet fitting.
Its front part must be inserted into the fuel inlet of the injector, and then firmly tightened to the injector.
Do not overtighten or undertighten the side inlet fitting.
The return flow from the injector passes through a quick-connect fitting with a Ø 6 mm hose connection.


Note! The DL-K7 fuel spray collector (Ø 7 mm) must be ordered separately.

Set of Delivery
DL-012 (CR30036). Adapter for testing truck injectors DL-012
No. Part Number Description Qty
1 DL-012 (CR30036) Adapter for testing truck injectors DL-012 1 pc
2 DL-CR50303 Supply fitting for truck adapter, complete assembly 1 pc
3 34-RL010601C Fitting 1/8″, Ø 6 mm, straight with collet clamp 1 pc
Equipment type

Adapters for cargo injectors
Components of diesel systems

Injectors
Adapter for checking the truck injectors on the bench or on a hand press with a signal simulator. The fuel supply from the high-pressure pipe is through the side-feed fitting.
It is necessary to install its front part into the injector fuel supply and then tightly screw it to the injector. Do not overtighten and do not pull on the side-feed fitting. Overflow from the injector takes place through the fitting-quick coupler Ø 6mm.
