DL-027(CR31698)

Adapter for testing truck injectors CNHTC.

Price: on request

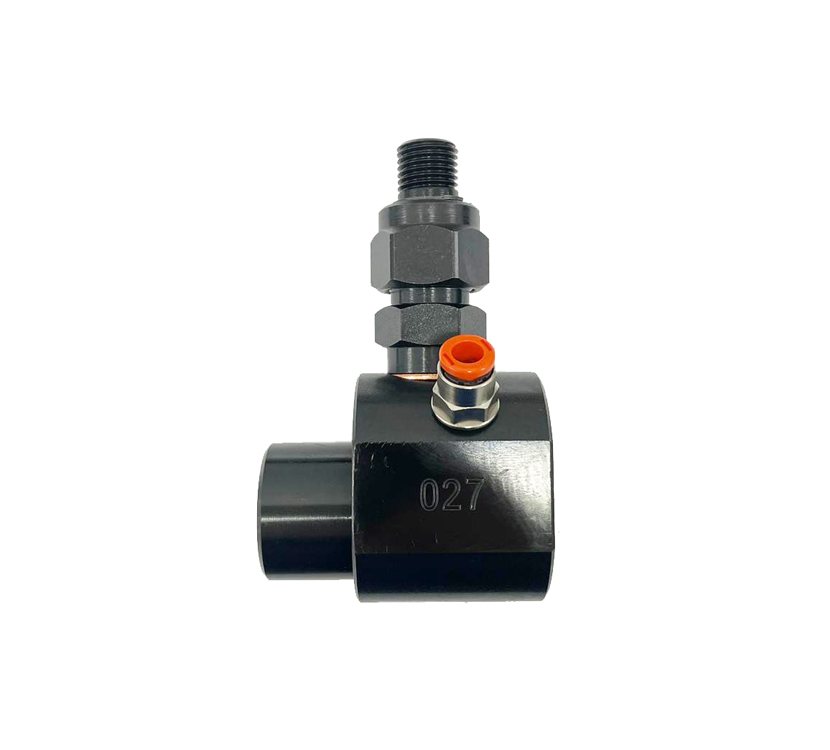

DL-027(CR31698). Adapter for testing truck injectors CNHTC.

Adapter for testing truck injectors CNHTC.
Size: Ø30
Fuel is supplied from the high-pressure pipe through the side inlet fitting.
Its front part must be inserted into the fuel inlet of the injector, and then firmly tightened to the injector.
Do not overtighten or undertighten the side inlet fitting.
The return flow from the injector passes through a quick-connect fitting with a Ø 6 mm hose connection.

Note! The DL-K7 fuel spray collector (Ø 7 mm) must be ordered separately.

Set of Delivery
DL-027(CR31698). Adapter for testing truck injectors CNHTC.
No. Part Number Description Qty
1 DL-027(CR31698) Adapter for testing truck injectors CNHTC. 1 pc
2 DL-CR50303 Supply fitting for truck adapter, complete assembly 1 pc
3 34-RL010601C Fitting 1/8″, Ø 6 mm, straight with collet clamp 1 pc
Truck injector test adapter:
  • 0 445 120 086 (0445120086)
  • 0 445 120 087 (0445120087)
  • 0 445 120 127 (0445120127)
  • 0 445 120 265 (0445120265)
  • 0 445 120 266 (0445120266)
  • 0 445 120 389 (0445120389)
  • 0 445 120 391 (0445120391)
  • 0 445 120 412 (0445120412)
  • 0 445 120 462 (0445120462)
  • 0 445 120 474 (0445120474)
  • 0 445 120 524 (0445120524)
  • 0 445 120 526 (0445120526)
  • 0 445 120 527 (0445120527)
  • 0 445 120 531 (0445120531)
  • 0 445 120 562 (0445120562)
  • 0 445 120 571 (0445120571)
  • 0 445 120 580 (0445120580)
