DL-022 (CR31567)

Adapter for testing cargo injectors Ø32

Price: on request

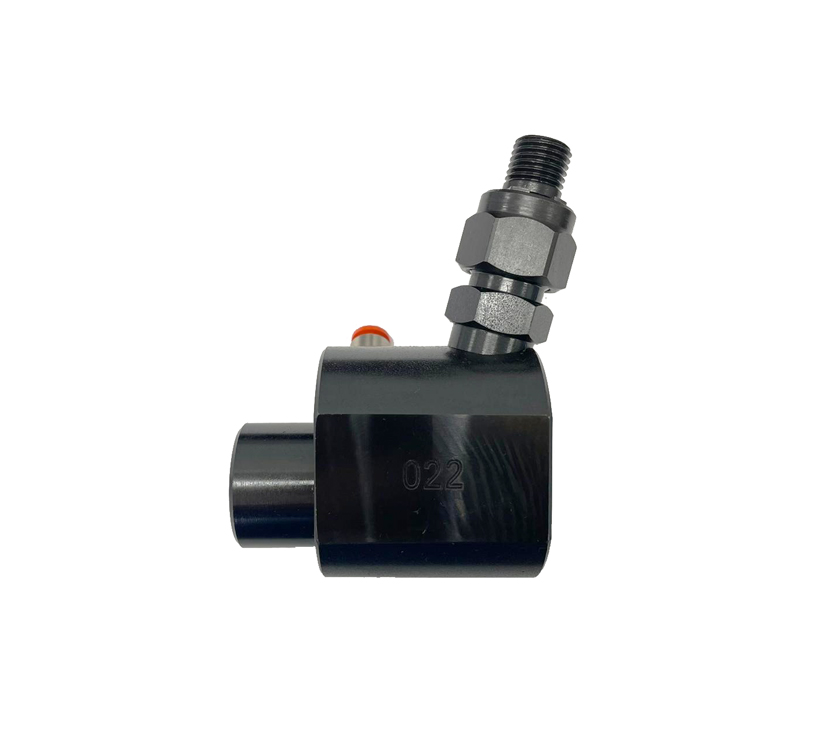

DL-022 (CR31567). Adapter for testing cargo injectors Ø32

Size: Ø32
Fuel is supplied from the high-pressure pipe through the side inlet fitting.
Its front part must be inserted into the fuel inlet of the injector, and then firmly tightened to the injector.
Do not overtighten or undertighten the side inlet fitting.
The return flow from the injector passes through a quick-connect fitting with a Ø 6 mm hose connection.


Note! The DL-K7 fuel spray collector (Ø 7 mm) must be ordered separately.

Set of Delivery
DL-022 (CR31567). Adapter for testing cargo injectors Ø32
No. Part Number Description Qty
1 DL-022 (CR31567) Adapter for testing cargo injectors Ø32 1 pc
2 DL-CR50303 Supply fitting for truck adapter, complete assembly 1 pc
3 34-RL010601C Fitting 1/8″, Ø 6 mm, straight with collet clamp 1 pc
